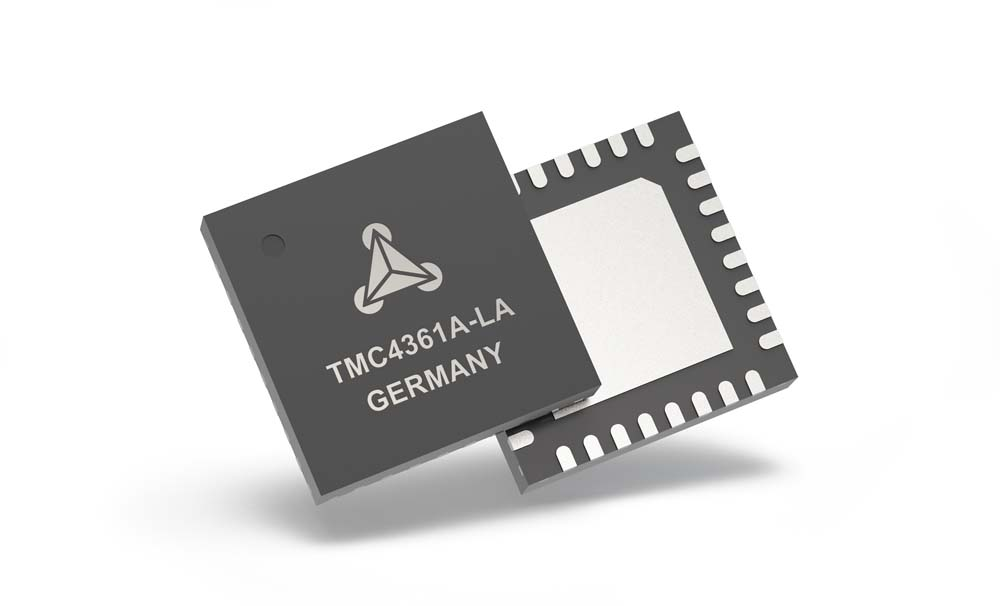

TMC4361A-LA-T
Working power supply voltage:
| 3 V to 5.2 V | |
| 4 mA | |
| 10 uA | |
| -40 degrees Celsius | |
| +125 degrees Celsius |

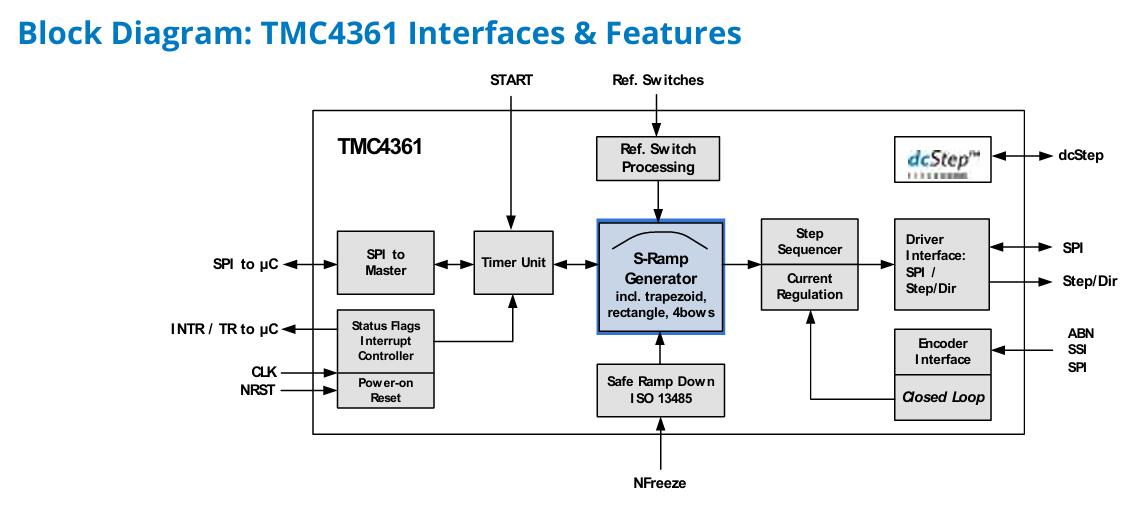

TMC4361A-LA-T is used for S-slope and sixPoint of stepper motors ™ The slope motion controller has been optimized for high speeds, allowing for immediate changes. TMC4361 provides SPI and stepper/indicator interfaces, as well as encoder interfaces for closed-loop operations.
TMC4361A-LA-T characteristics
SPI interface for μ C with easy-to-use protocol.
SPI interface for SPI motor stepper driver.
Encoder interface for incremental or serial encoders.
Closed loop operation of stepper and SPI drivers.
Integrated ChopSync ™ And dcStep ™ support.
Internal slope generator (S-shaped slope or six point) ™ Slope, supports immediate changes.
Controlled PWM output reference switch proce
TMC4361A-LA-T characteristics
SPI interface for μ C with easy-to-use protocol.
SPI interface for SPI motor stepper driver.
Encoder interface for incremental or serial encoders.
Closed loop operation of stepper and SPI drivers.
Integrated ChopSync ™ And dcStep ™ support.
Internal slope generator (S-shaped slope or six point) ™ Slope, supports immediate changes.
Controlled PWM output reference switch proce
Attachment Download
