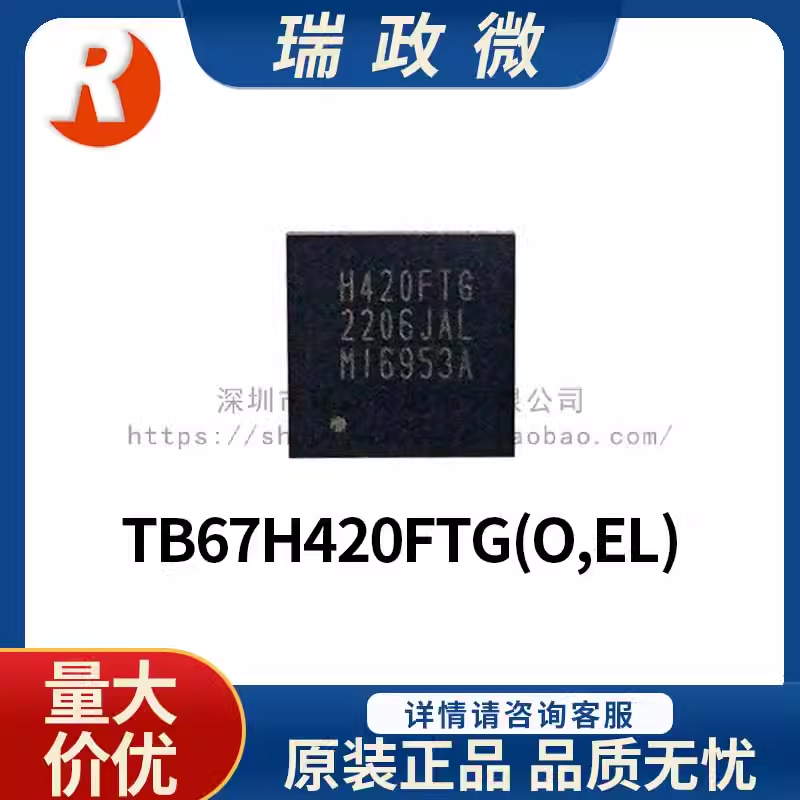

TOSHIBA TB67H420FTG Brushed DC Motor Driver
The Toshiba TB67H420FTG Brushed DC Motor Driver is a motor driver with resistance free current control. This motor driver integrates an internal H-bridge and can be independently controlled using dual H-bridge mode as either 2 brushed DC motor drivers or 1 stepper motor driver. The TB67H420FTG has high voltage (50V), high current (9A), error detection function, error detection signal output, and low Rds (on). The motor driver is packaged in a small 7mm x 7mm square flat leadless (QFN-48) package with thermal conductive pads. Typical applications include office equipment, household appliances, bank terminals, and ATMs.
