TLP176AM features (1) (2) (3) (4) (5) (6) (7) (8) (9) Halogen free. For detailed information, please refer to "Halogen free Resin Packaging Devices" at the end of this data sheet. Working temperature range: 110 (maximum) Normally open (1-Form-A) OFF state Output terminal voltage: 60 V (minimum) Trigger LED current: 3 mA (maximum) Conduction state current: 700 mA (maximum) Conduction state resistance: 2 Ω (maximum) Isolation voltage: 3750 Vrms (minimum)
Safety standard UL certification: UL 1577, document number E67349 cUL certification: CSA component acceptance service No.5A, document number E67349 UL certification: UL 508, document number E499232 (Note 1) VDE certification: EN 60747-5-5 (Note 2) Note 1: For UL 508 products, please refer to the absolute maximum rating (UL approved UL 508). Note 2: When VDE certified models are required, please specify option (V4)

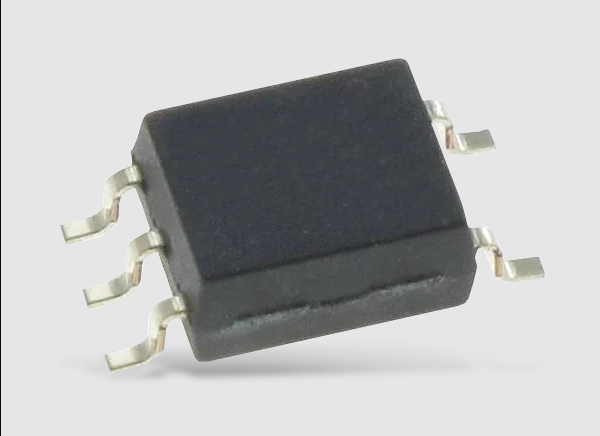

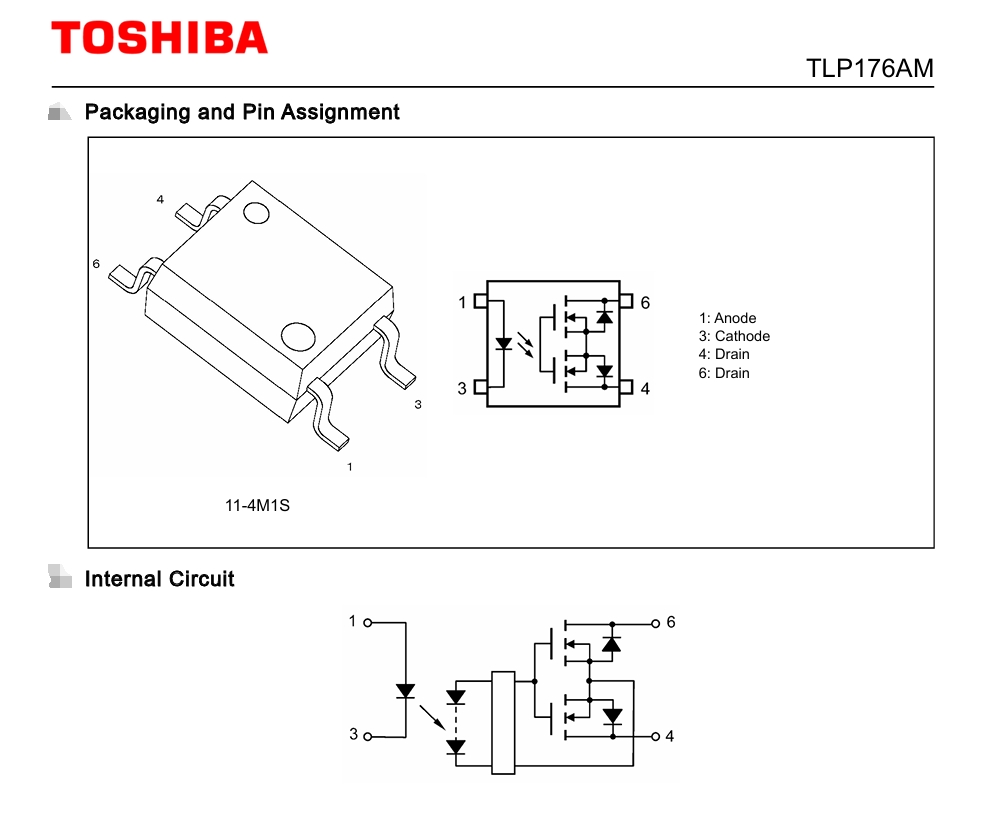

TLP176AM consists of an infrared LED and a photoelectric MOSFET, packaged in a 4-pin SO6 package. This optorelay has a higher rated output current than a phototransistor type optocoupler; Therefore, it is suitable for use as an on/off control for high currents. Toshiba optocouplers are used in various applications, from industrial equipment to household appliances and equipment. The optocoupler consists of high-power infrared LEDs and photodetectors. These optocouplers have been certified to major international safety standards and provide high isolation voltage and low power consumption. This makes them very suitable for applications that require enhanced security and environmental friendliness.
