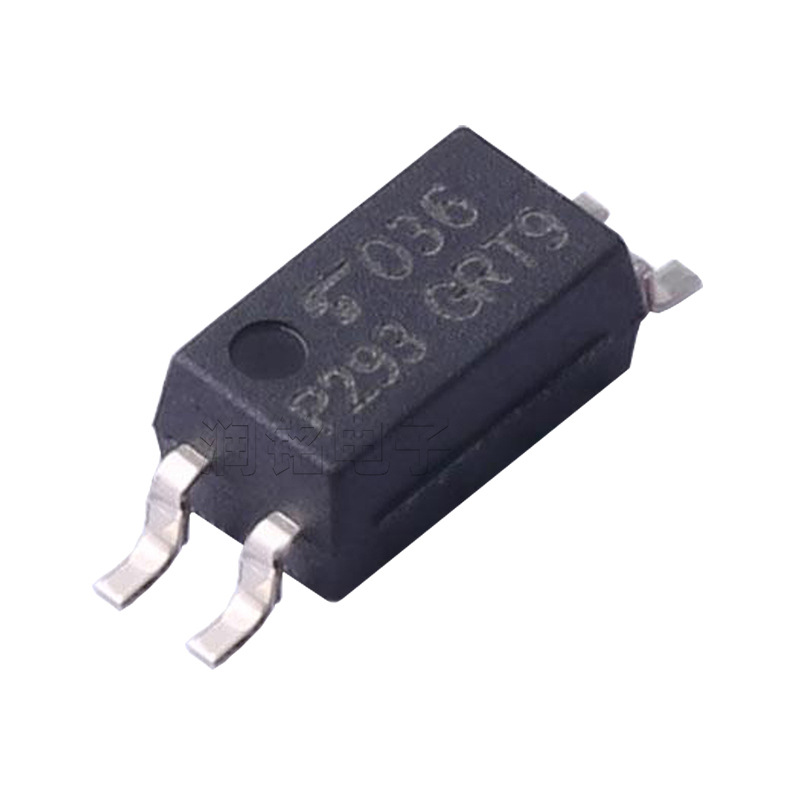

TLP293 (GR-TPL, E (T) is a low input, high isolation type optocoupler composed of phototransistors, coupled to infrared LEDs by a photonic crystal tube. Due to TLP293 (GR-TPL, E (T) ensuring high isolation voltage (3750 Vrms) and wide operating temperature (Ta=-55 to 125 ₂), it is suitable for high-density surface mount applications such as programmable controllers. Collector emitter voltage: 80 V, current transfer ratio: 50% (@ IF=0.5 mA, VCE=5 V) GB grade: 100% (@ IF=0.5 mA, VCE=5 V) Isolation voltage: 3750 Vrms
TLP293 (GR-TPL, E (T characteristic collector emitter voltage: 80 V (minimum) Current transfer ratio: 50% (minimum) (@ IF=0.5 mA, VCE=5 V) GB grade: 100% (minimum) (@ IF=0.5 mA, VCE=5 V) Isolation voltage: 3750 Vrms (minimum) Operating temperature: -55 to 125
Safety standard UL certification: UL 1577, document number E67349 cUL certification: CSA component acceptance service No.5A, document number E67349 VDE certification: EN 60747-5-5, EN 62368-1 (Note 1) CQC certification: GB4943.1, GB8898 Thailand factory Note 1: When VDE certification type is required, please specify option (V4).
