TCR3DM13

netwing 2024-05-07

Toshiba TCR3DM 300mA low-voltage differential voltage regulator

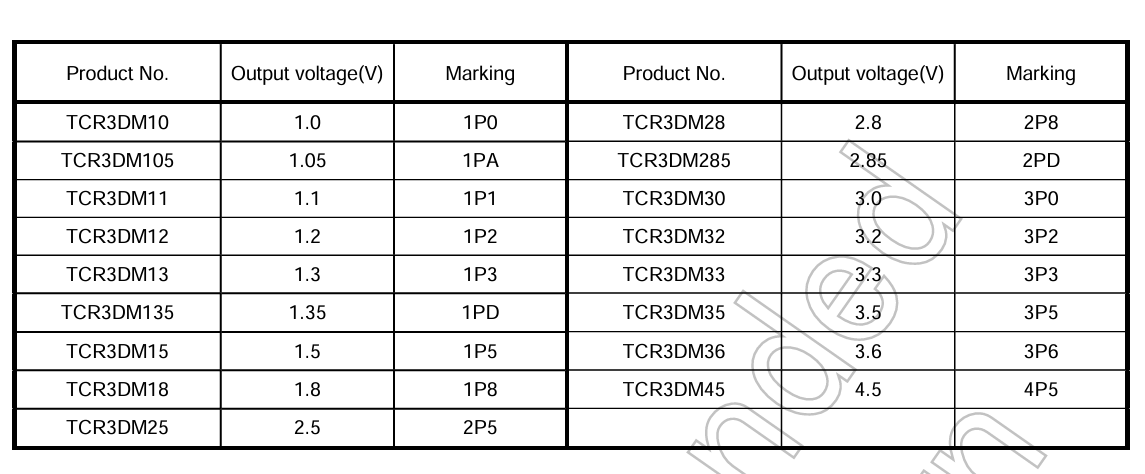

The Toshiba TCR3DM 300mA low-voltage differential regulator is a CMOS universal single output regulator with on/off control inputs. TCR3DM provides low voltage differential, low output noise voltage, and low surge current. LDO provides a fixed output voltage of 1.0V to 4.5V and can drive currents up to 300mA. In addition, TCR3DM also has overcurrent protection, over temperature protection, surge current protection circuit, and automatic discharge function.

The Toshiba TCR3DM 300mA low-voltage differential voltage regulator has a 210mV (2.5V output, I-outer=300mA) output noise voltage as low as 38 μ V effective value (2.5V output), and a transient load response of only Δ V-outer=± 80mV (I-outer=1mA ÷ 300mA, C-outer=1.0 μ F).

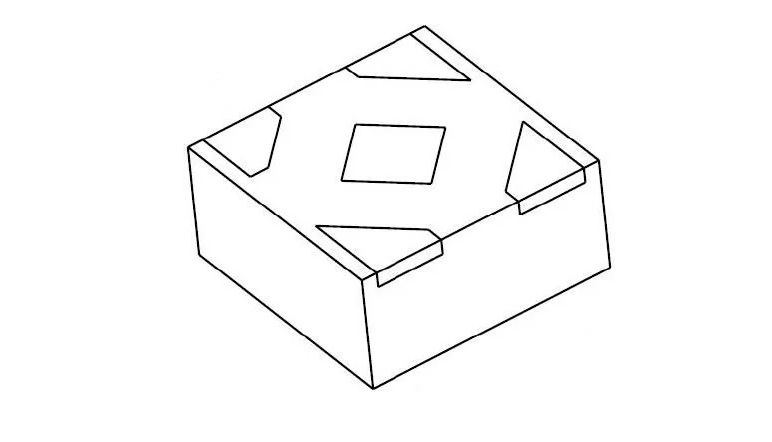

TCR3DM13 is packaged using ultra small plastic molds DFN4/DFN4E (1.0mm x 1.0mm; t 0.58mm). The TCR3DM series can be used in coordination with small ceramic input and output capacitors, making it ideal for portable applications that require high-density circuit board assembly, such as mobile phones.

features

Low voltage differential voltage
Vdo=210mV (typical value), 2.5V output, I-out=300mA
Vdo=270mV (typical value), 1.8V output, I-out=300mA
Vdo=490mV (typical value) (when outputting at 1.2V, Iout=300mA
Low output noise voltage
V not=38 microvolts effective value (typical value), when outputting at 2.5V, I outside=10mA, 10Hz ≤ f ≤ 100kHz
Fast load transient response (Δ V outside=± 80mV (typical value), I outside=1mA ÷ 300mA, C outside=1.0 μ F)

High ripple suppression (R.R=70dB (typical value) (2.5V output, external I=10mA, f=1kHz)
Overcurrent protection
Over temperature protection
Surge current protection circuit
Automatic discharge
Dropdown connection between Control and GND
Ceramic capacitors can be used (C at=1.0 μ F, C outside=1.0 μ F)
Ultra small package DFN4/DFN4E (1.0mm x 1.0mm; t 0.58mm)

Pin allocation

Application circuit

Toshiba TCR3DM 300mA 低压差稳压器
