STM32G070CBT6

netwing 2024-05-08

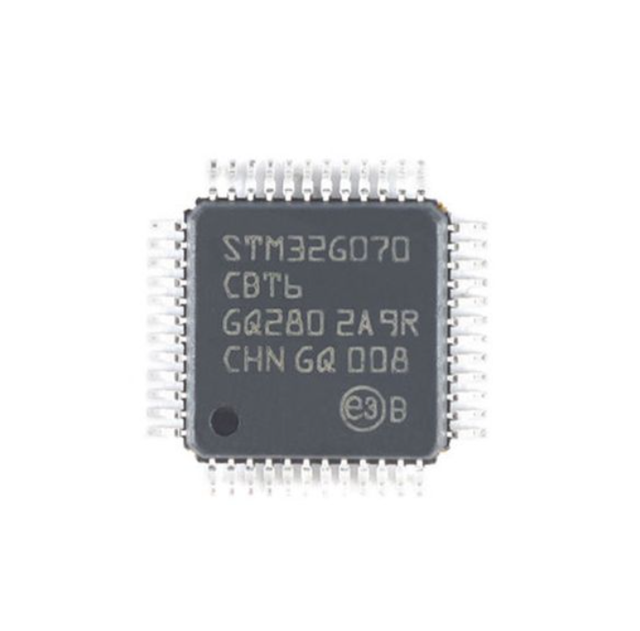

STMicroelectronics STM32G070CBx microcontroller
The STMicroelectronics STM32G070CBx microcontroller is based on a high-performance Arm Cortex-M0+32-bit RISC core, operating at a frequency of 64MHz. These MCUs integrate memory protection units (MPUs), high-speed embedded memory, direct memory access (DMA), extensive system functionality, enhanced I/O, and peripherals. The operating temperature range of the STM32G070CBx device is -40 ° C to 85 ° C, and the power supply voltage range is 2V to 3.6V. These microcontrollers have a CRC computing unit, communication interface, and calendar RTC, with functions of alarms and periodic wake-up from stop/standby mode.

characteristic

  • 核心：
    Arm 32 位 Cortex-M0+ CPU®®
    记忆：
    128KB闪存，带保护功能
    36KB SRAM
    CRC计算单元
    复位和电源管理：
    上电/断电 rRset （POR/PDR）
    低功耗模式：
    休眠、停止和待机
    V蝙蝠为RTC和备份寄存器供电
    多达 59 个快速 I/O：
    所有这些都可映射到外部中断向量上
    多个 5V 容限 I/O
    具有灵活映射功能的 7 通道 DMA 控制器
  • 12 bit and 0.4 μ s ADC:
    Up to 16 bits, with hardware oversampling function
    Conversion range from 0V to 3.6V
    11 timers:
    16 bit, 5 universal 16 bit, 2 basic 16 bit, 2 watchdog and SysTick timers for advanced motor control
    Calendar RTC with alarms and periodic wake-up from stop/standby
    Communication interface:
    The II2C bus interface supports fast mode and interfaces with additional current absorption, one supports SMBus/PMBus, and wakes up from stop mode
    4 USARTs with master/slave synchronized SPI
    Two SPIs have 4 to 16 programmable bit frames, and one SPI interfaces with I2S
    Serial Line Debugging (SWD) Development Support
    All packaging complies with ECOPACK 2 standards

specifications

  • Clock management:
    4MHz to 48MHz crystal oscillator
    32kHz crystal oscillator with calibration function
    Internal 16MHz RC with PLL option
    Internal 32kHz RC oscillator (± 5%)
  • Working temperature range: -40 ° C to 85 ° C
    Power supply voltage range from 2V to 3.6V

circuit diagram

Application Circuit Diagram - STMicroelectronics STM32G070CBx Microcontrollers

block diagram

Block Diagram - STMicroelectronics STM32G070CBx Microcontrollers
