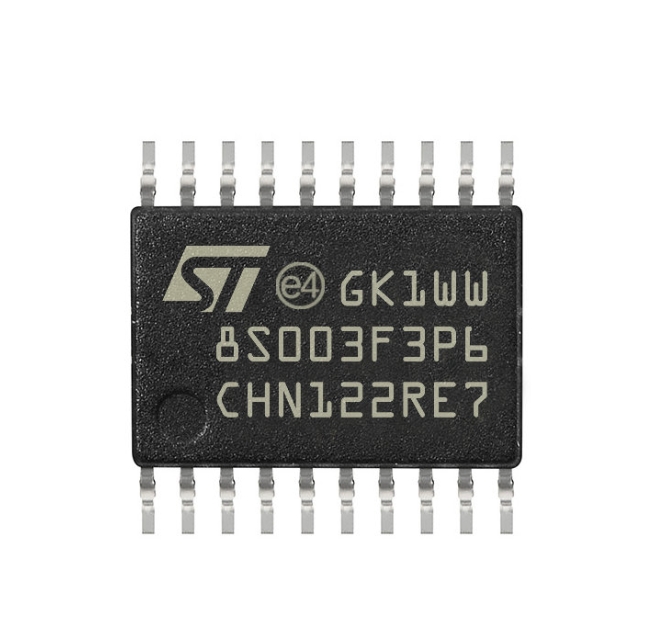

STM8S003F3P6
The STM8S003F3/K3 Ultra Value Series 8-bit microcontroller provides 8 KB of flash program memory and integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller series reference manual (RM0016). The STM8S003F3/K3 high-value series devices have the following advantages: performance, robustness, and reduced system costs. Supports real data EEPROM with up to 100000 write/erase cycles, advanced 16 MHz clock frequency advanced core and peripherals manufactured with advanced technology, powerful I/O, independent watchdog with independent clock source, and clock security system, ensuring device performance and robustness. Due to the high system integration with internal clock oscillator, watchdog, and undervoltage reset function, the system cost can be reduced.
main features
core
16 MHz advanced STM8 core, using Harvard architecture and 3-stage pipeline
Extended Instruction Set
memory
Program memory: 8 KB flash memory; After 100 cycles, data can be retained for 20 years at 55 ° C
Memory: 1 KB
Data storage: 128 bytes of true data EEPROM; Durability up to 100 K write/erase cycles
Clock, reset, and power management
2.95 V to 5.5 V working voltage
Flexible clock control, 4 main clock sources, low-power crystal resonator oscillator external clock input internal, user adjustable 16 MHz RC internal low-power 128 kHz RC
Clock security system with clock monitor
Power management low-power mode (wait, actively stop, stop), separate shutdown of external clock permanent activity, low-power power on and power off reset
Interrupt management
Nested interrupt controller with 32 interrupts
Up to 27 external interrupts on 6 vectors
timer
Advanced control timer: 16 bits, 4 CAPCOM channels, 3 complementary outputs, dead time insertion, and flexible synchronization
16 bit universal timer with 3 CAPCOM channels (IC, OC, or PWM)
8-bit basic timer with 8-bit prescaler
Automatic wake-up timer
Window and independent watchdog timer
communication interface
UART with clock output for synchronous operation, smart card, IrDA, LIN main mode
SPI interface up to 8 Mbit/s
My 2C interface can reach up to 400 Kbit/s
Analog to Digital Converter (ADC)
10 bit ADC, ± 1 LSB ADC with up to 5 multiplexing channels, scan mode, and analog watchdog
I/O interface
Up to 28 I/Os, packaged with 32 pins, including 21 high current outputs
Highly robust I/O design, resistant to current injection
Development support
Embedded Single Line Interface Module (SWIM) for fast on-chip programming and non-invasive debugging
main features
core
16 MHz advanced STM8 core, using Harvard architecture and 3-stage pipeline
Extended Instruction Set
memory
Program memory: 8 KB flash memory; After 100 cycles, data can be retained for 20 years at 55 ° C
Memory: 1 KB
Data storage: 128 bytes of true data EEPROM; Durability up to 100 K write/erase cycles
Clock, reset, and power management
2.95 V to 5.5 V working voltage
Flexible clock control, 4 main clock sources, low-power crystal resonator oscillator external clock input internal, user adjustable 16 MHz RC internal low-power 128 kHz RC
Clock security system with clock monitor
Power management low-power mode (wait, actively stop, stop), separate shutdown of external clock permanent activity, low-power power on and power off reset
Interrupt management
Nested interrupt controller with 32 interrupts
Up to 27 external interrupts on 6 vectors
timer
Advanced control timer: 16 bits, 4 CAPCOM channels, 3 complementary outputs, dead time insertion, and flexible synchronization
16 bit universal timer with 3 CAPCOM channels (IC, OC, or PWM)
8-bit basic timer with 8-bit prescaler
Automatic wake-up timer
Window and independent watchdog timer
communication interface
UART with clock output for synchronous operation, smart card, IrDA, LIN main mode
SPI interface up to 8 Mbit/s
My 2C interface can reach up to 400 Kbit/s
Analog to Digital Converter (ADC)
10 bit ADC, ± 1 LSB ADC with up to 5 multiplexing channels, scan mode, and analog watchdog
I/O interface
Up to 28 I/Os, packaged with 32 pins, including 21 high current outputs
Highly robust I/O design, resistant to current injection
Development support
Embedded Single Line Interface Module (SWIM) for fast on-chip programming and non-invasive debugging
