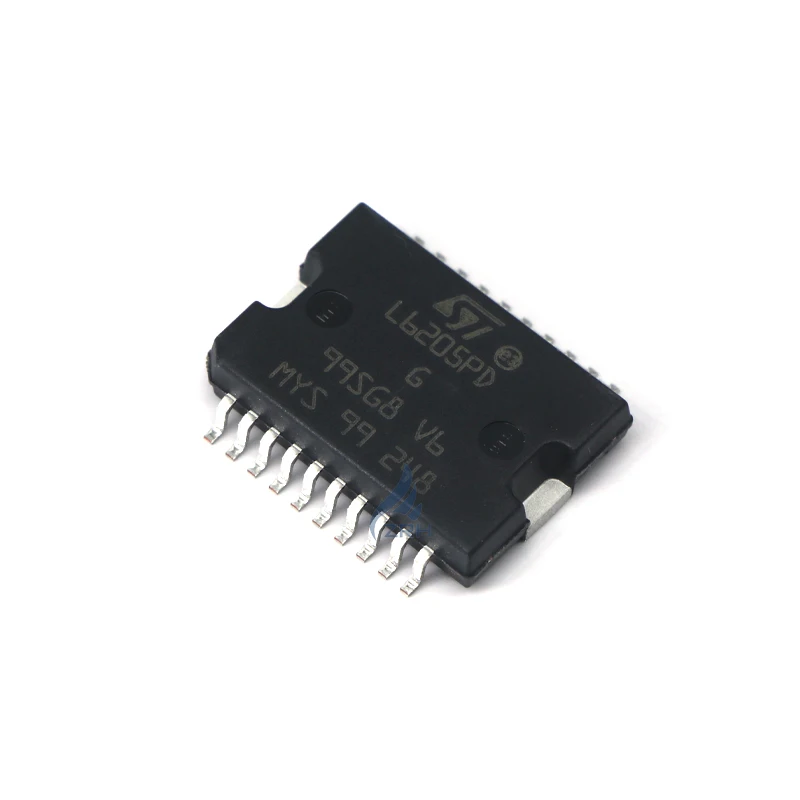

L6205PD013TR
-
L6205PD013TR functional features:
Integrated fast freewheeling diode
Under voltage locking
Cross conduction protection
Parallel operation
Working power supply voltage: 8 to 52V
RDS (on) 0.3 typical value @ Tj=25 ° C
5.6A output peak current (2.8A DC)
Non dissipative overcurrent protection
Thermal shutdown
Working frequency up to 100KHz

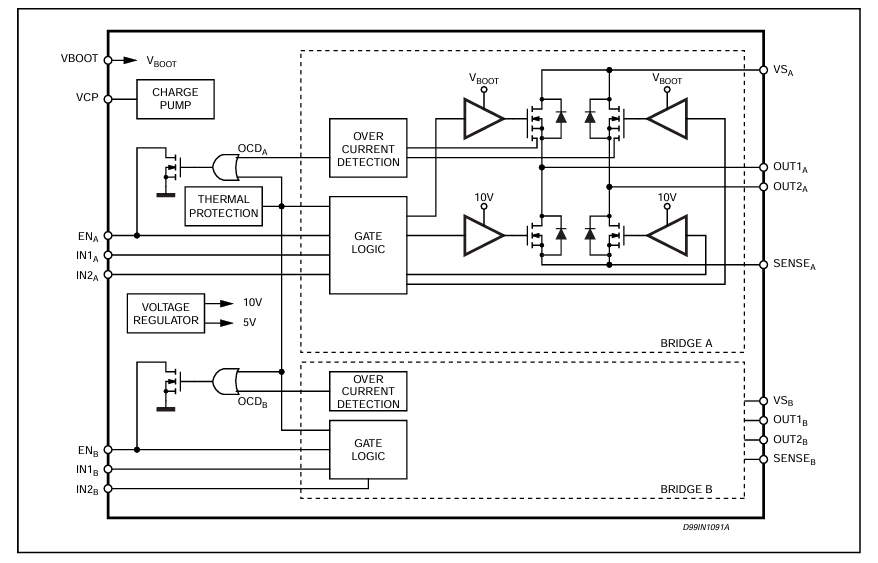

ST Semiconductor L6205PD013TR Operating Power Supply Voltage: 8 to 52V 5.6A Output Peak Current (2.8A DC) RDS (ON) 0.3 Ω Typical @ Tj=25 ° C Operating Frequency Up to 100KHz Non Dissipative Overcurrent Protection Parallel Operation Cross Conduction Protection Thermal Shutoff Voltage Locking Integrated Fast Freewheeling Diode Typical Application Bipolar Stepping Motor Dual or Four Way DC Motor Description L6205 is a DMOS dual full bridge designed specifically for motor control applications, implemented using MultiPower BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. L6205 adopts PowerDIP20 (16+2+2), PowerSO20, and SO20 (16+2+2) packaging, with non dissipative protection functions of high-voltage side PowerMOSFET and thermal shutdown.
-
-
Attachment Download
