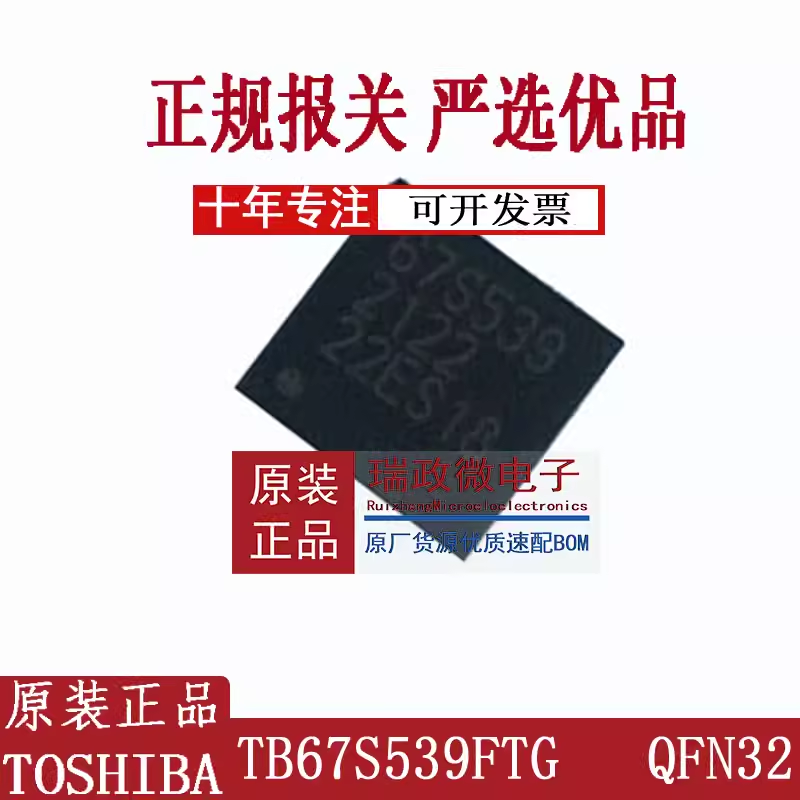

Toshiba TB67S539FTG bipolar stepper motor driver IC
Toshiba TB67S539FTG bipolar stepper motor driver IC is a two-phase bipolar stepper motor driver that uses a PWM chopper. TB67S539FTG adopts BiCD process and has an absolute maximum rated current of 40V/2.0A. The TB67S539FTG stepper motor can be operated by a single VM power supply through a built-in voltage regulator. The device adopts QFN32 5mm x 5mm packaging and reduces external components.
characteristic
-
BiCD process single chip IC
Capable of controlling bipolar stepper motors
The Advanced Current Detection System (ACD) can achieve PWM constant current control without the need for external current detection resistors
Advanced Dynamic Hybrid Attenuation (ADMD) enables efficient PWM constant current control
Clock input control
Reduced external components used for charge pumps
-
Run at full step, half step, quarter step, 1/8, 1/16, and 1/32 step resolutions
BiCD process: Using DMOSFET for output power transistor
High voltage withstand and high current drive: 40V/2.0A (absolute maximum rated value)
Built in thermal shutdown (TSD), overcurrent detection (ISD), and undervoltage lockout (UVLO)
QFN32 (5mm x 5mm) package
