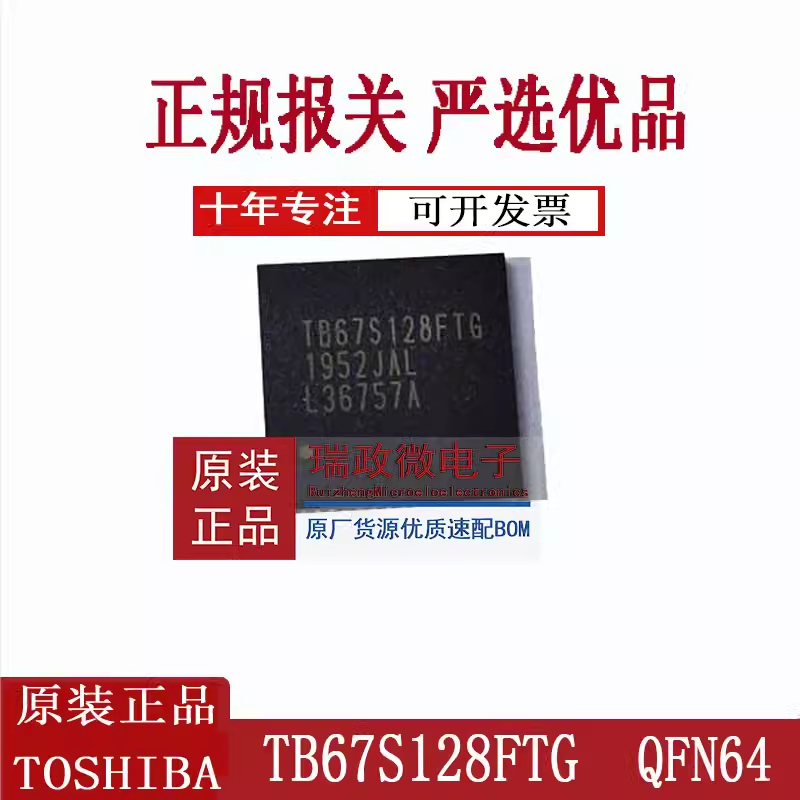

TB67S128FTG(O,EL)

netwing 2024-04-20

TB67S128FTG is a two-phase bipolar stepper motor driver that uses a PWM chopper. Built in clock decoder. Made using BiCD technology, with an output rated value of 50 V/5.0 A (motor power supply voltage=44 V).

Toshiba TB67S128FTG stepper motor controller
The Toshiba TB67S128FTG stepper motor controller is a two-phase bipolar stepper motor driver using PWM chopping, with a built-in clock and support for serial control. This motor drive IC can control a bipolar stepper motor. The TB67S128FTG stepper motor can operate in full, half, 1/4, 1/8, 1/16, 1/32, 1/64, and 1/128 stepper modes. The features include a built-in anti stall structure, a built-in current free detection resistor circuit control structure, high voltage and high current, and a built-in VCC regulator for internal circuit use.

characteristic

BiCD process integrated single-chip IC
Controllable one bipolar stepper motor
Constant current drive controlled by PWM
Low on resistance (high voltage side+low voltage side=0.25 Ω (typical value)) MOSFET output stage
Allow full, half, 1/4, 1/8, 1/16, 1/32, 1/64, and 1/128 step working modes
Efficient Motor Current Control Mechanism (ADMD: Advanced Dynamic Hybrid Attenuation)
Built in anti stall structure (AGC: active gain control)
Built in no current detection

Multi fault detection function:
Thermal shutdown (TSD)
Over current protection (ISD)
Power on reset (POR)
Motor load open circuit (OPD)
Fault detection (TSD/ISD/OPD) signal output function
Built in VCC regulator for internal circuit use
The chopping frequency of the motor can be adjusted through external resistors and capacitors
Small package with heat dissipation pads
TB67S128FTG：P-VQFN64-0909-0.50-006

TB67S128FTG框图
