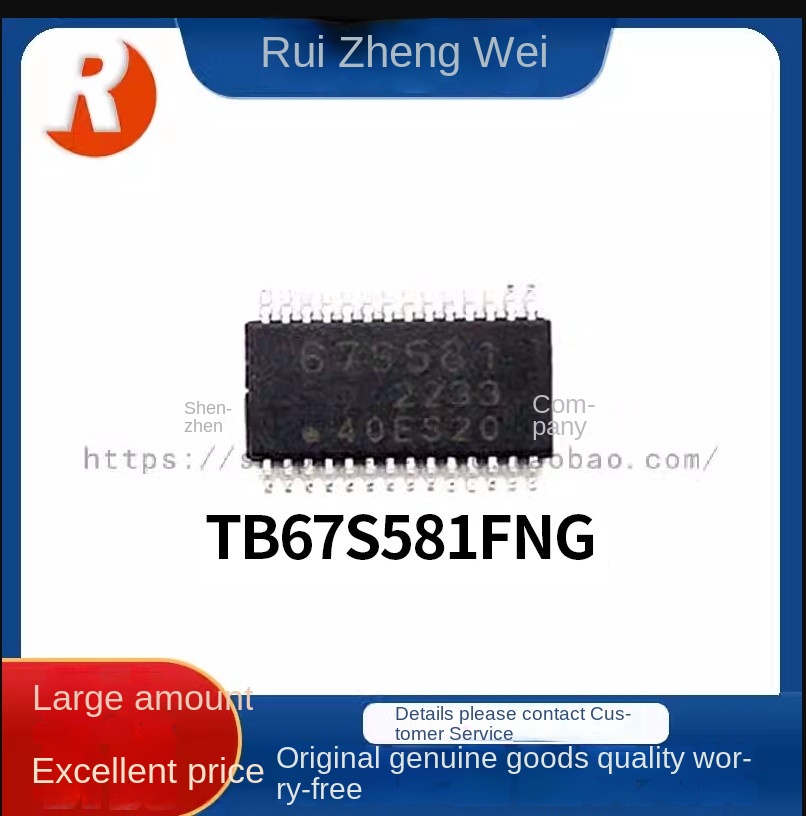

TB67S581FNG BiCD constant current two-phase bipolar stepper motor driver IC 1. Description: The TB67S581FNG is a two-phase bipolar stepper motor driver IC that uses a PWM chopper. Made using BiCD technology, TB67S581FNG has a rated value of 50 V/2.5 A. The built-in voltage regulator for IC operation allows the motor to be driven by a single VM power supply.

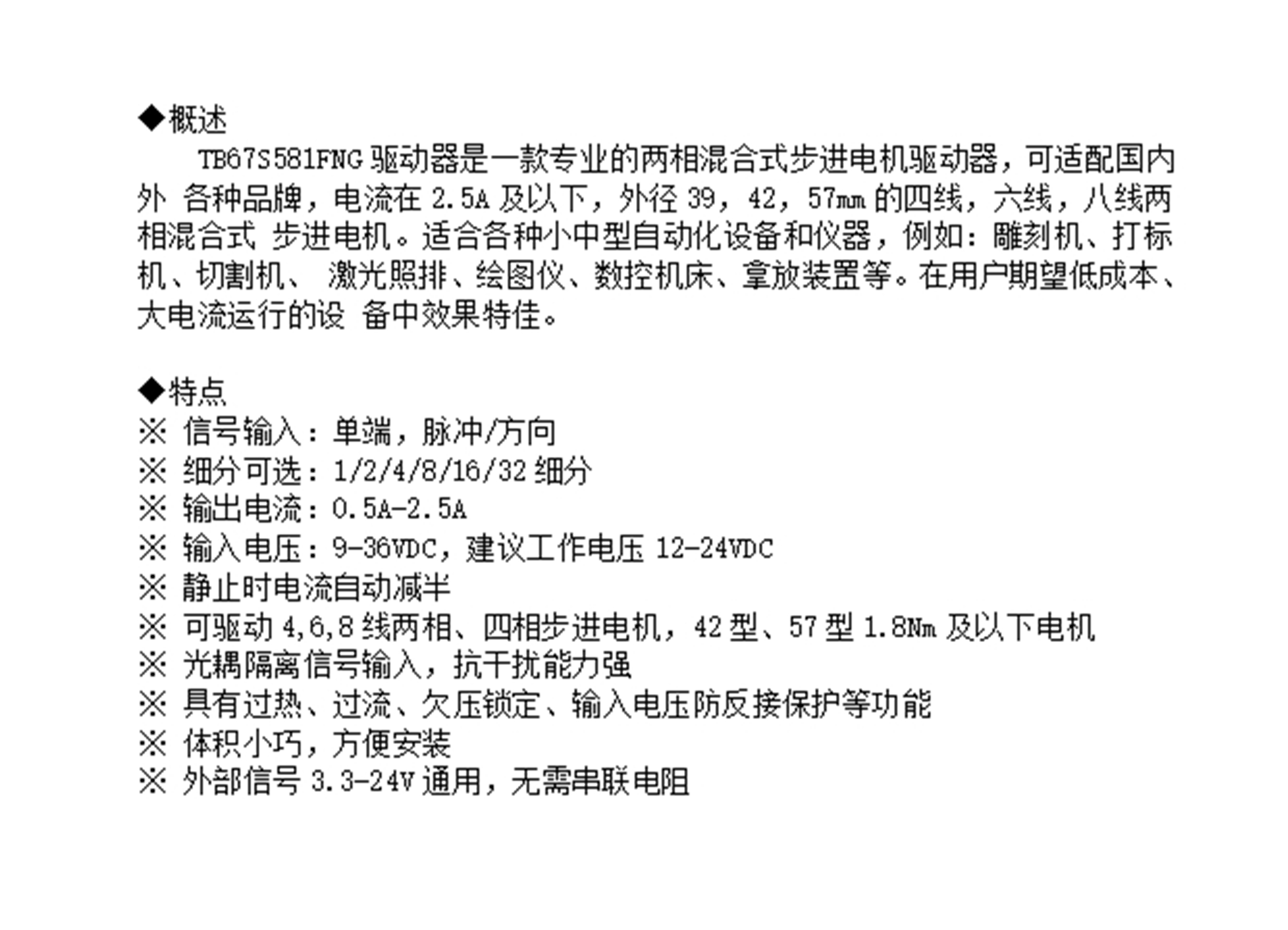

TB67S581FNG features: BiCD process integrated with a single chip IC, capable of controlling bipolar stepper motors, attenuation mode selection function (mixed attenuation/slow attenuation/fast attenuation), power-saving function (sleep mode), clock input control, 3.3 V regulator output, allowing full step, half step, quarter step, 1/8, 1/16, 1/32 step operation, BiCD structure: DMOSFET is used to output power transistors. High breakdown voltage and high current: 50 V/2.5 A (absolute maximum rated value). Built in thermal shutdown detection (TSD), overcurrent detection (ISD), and undervoltage lock detection (UVLO). Error detection flag output function (nFAULT). Reduce the number of external components by reducing charge pumps. Package: P-HTSSOP28-0510-0.65-001

Toshiba 50V Brushless and Stepping Motor Driver

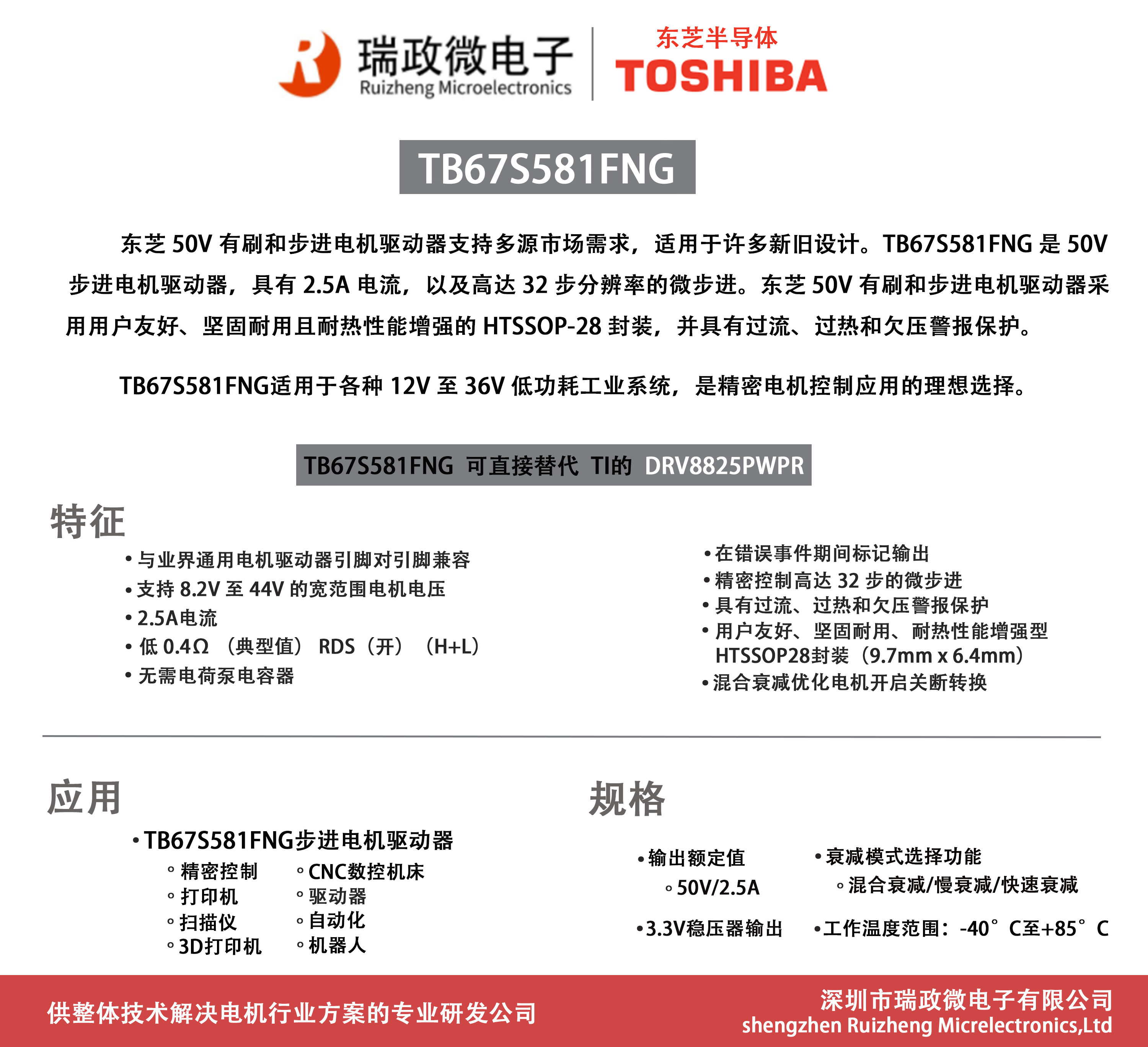

Toshiba 50V brushless and stepper motor drivers support multi-source market demand and are suitable for many new and traditional designs. The TB67H480FNG and TB67H481FNG modules are 2-channel 50V/2.5A brushless motor drivers. TB67H480FNG uses phase input, while TB67H481FNG uses clock input. TB67S580FNG and TB67S581FNG are respectively 1.6A and 2.5A 50V stepper motor drivers, as well as micro steppers with up to 32 levels of resolution. The Toshiba 50V brushless and stepper motor driver adopts a user-friendly, sturdy, and thermally enhanced HTSSOP-28 package, and has overcurrent, overheating, and undervoltage alarm protection. TB67S580FNG and TB67S581FNG are suitable for various low-power industrial systems ranging from 12V to 36V, making them ideal choices for precision motor control applications. TB67H480FNG and TB67H481FNG are suitable for general sports applications.

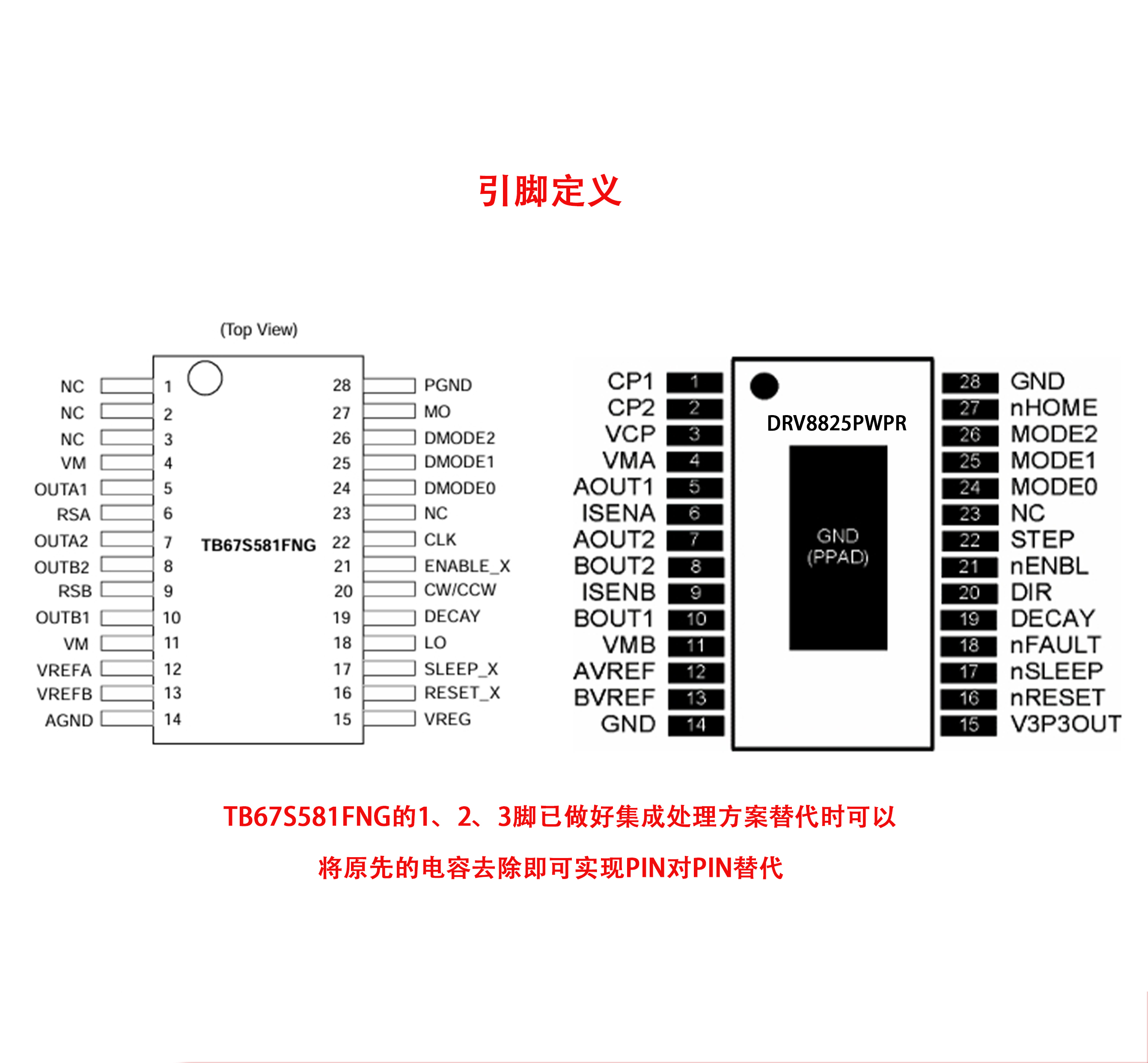

这些东芝部件是引脚对引脚兼容的，以促进市场对多源组件的需求，并可被视为下表中行业公认的电机驱动器的替代品。

features

Compatible with industry wide motor driver pins
Supports a wide motor voltage range of 8.2V to 44V
2.5A current
0.4 Ω (typical value) R low DS (on) (high+long)
No charge pump capacitor required
Hybrid attenuation optimization for motor on/off transition
Mark outputs during fault events

Realize up to 32 levels of microstepping through precision control (TB67S580FNG/TB67S581FNG only)
Equipped with overcurrent, overheating, and undervoltage alarm protection
User friendly, sturdy, and heat-resistant HTSSOP28 package (9.7mm x 6.4mm)

application

TB67S580/581FNG stepper motor driver
Precision control
printer
Scanner
3D printer
numerical control machine
Driver
automation
robot

TB67H480/481FNG Brushed Motor Driver
General motion control
industrial equipment
printer
manager
automation
robot

Specifications

Output rated value
50V/2.5A (TB67H480FNG, TB67H481FNG, and TB67S581FNG)
50V/1.6A（TB67S580FNG）
3.3V voltage regulator output

Attenuation mode selection function
Slow attenuation/fast attenuation (TB67H480FNG)
Mixed decay/slow decay/fast decay (TB67H481FNG, TB67S580FNG, and TB67S581FNG)
Working temperature range: -40 ° C to+85 ° C
