Toshiba TCR3UM 300mA low-voltage differential voltage regulator
The Toshiba TCR3UM 300mA low-voltage differential regulator is a CMOS universal single output regulator with on/off control inputs. TCR3UM has ultra-low static bias current and low voltage difference. LDO supports a fixed output voltage of 0.8V to 5.0V and can drive currents up to 300mA. In addition, these devices also provide overcurrent protection, thermal shutdown function, and automatic discharge function.

The rated low voltage differential voltage of Toshiba TCR3UM 300mA low voltage regulator is 196mV (3.3V output, external I=300mA).

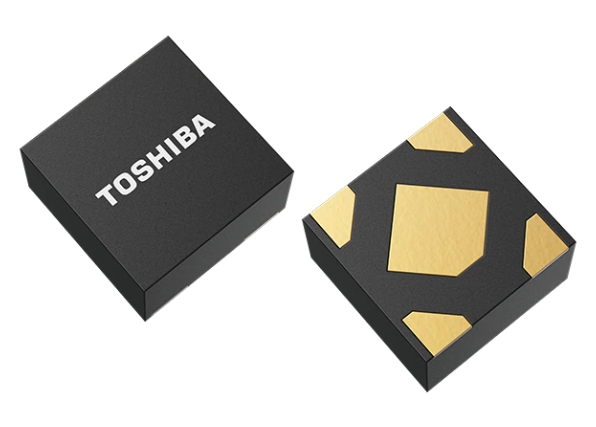

TCR3UM185A uses ultra small plastic molds DFN4/DFN4E (1.0mm x 1.0mm; t 0.60mm packaging). The TCR3UM series can be coordinated with small ceramic input and output capacitors, making it ideal for portable applications that require high-density circuit board components, such as mobile phones, IoT devices, and wearable devices.

features

Ultra small package DFN4/DFN4E (1.0mm x 1.0mm; t 0.60mm (maximum))
Low static bias current (IB=0.34 μ A (typical value) (outside of I)=0mA, output voltage up to 1.5V)
High ripple suppression ratio: 70dB (typical value) (0.8V) output
Fast load transient response -51/+36mV (0.8V output, I-outer=1mA æ 50mA
Low voltage differential voltage
VDO=196mV (typical value), 3.3V output, external I=300mA

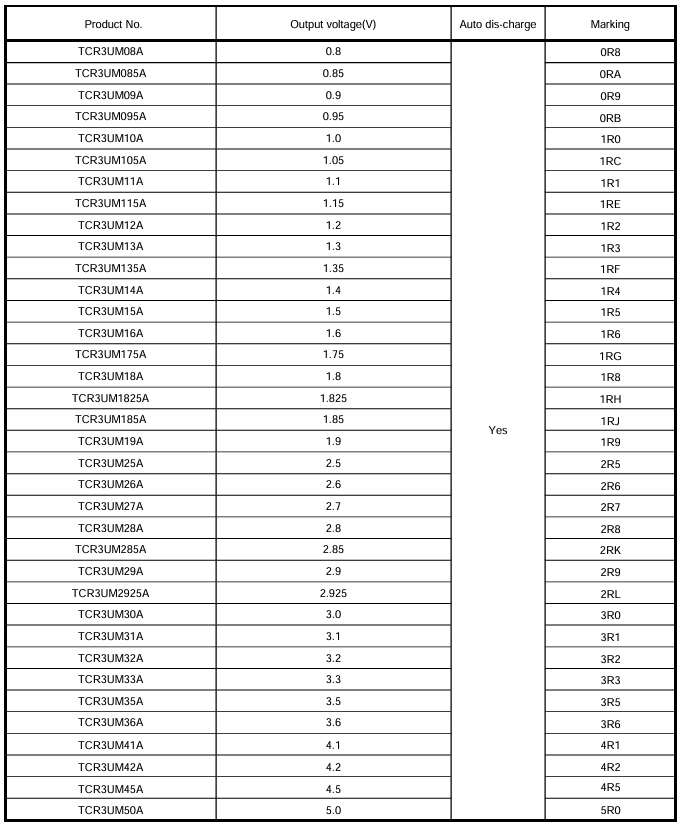

Wide range output voltage string (V outer=0.8V to 5.0V)

High V external accuracy ± 1.0% (1.8V ≤ V external)
Overcurrent protection
Hot shutdown function
Automatic discharge
Surge current protection circuit
Dropdown connection between Control and GND
Ceramic capacitors can be used (C at=1 μ F, C outside=1 μ F)

application

Developing for power IC
Portable applications

IoT devices
wearable devices

Pin allocation

block diagram

Block Diagram - Toshiba TCR3UM 300mA Low Dropout Regulators
