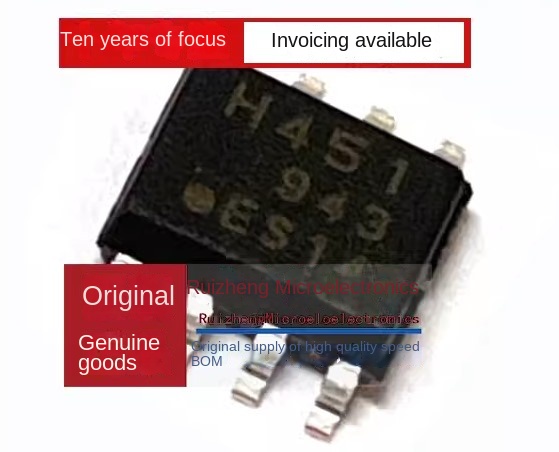

TB67H451AFNG(O,EL)
Toshiba TB67H45 Brushed Motor Driver
The Toshiba TB67H451AFNG brushless motor driver is a pulse width modulation (PWM) chopper type DC brushless motor driver. These devices support PWM constant current drive and direct PWM drive. The TB67H451AFNG motor driver is manufactured using the BiCD process, which integrates bipolar, CMOS, and double diffused MOS (DMOS) devices on a single chip. The TB67H451FNG motor driver has a built-in output MOSFET, a regulator with low on resistance and V copy for internal circuit operation. These devices also include error detection functions such as thermal shutdown (TSD), overcurrent detection (ISD), and undervoltage lockout (UVLO). The rated output voltage of the two devices is 50V and the maximum current is 3.5A.
The Toshiba TB67H450AFNG and TB67H451AFNG brushless motor drivers are packaged in P-HSOP-8, with a working temperature range of -40 ° C to+85 ° C.
features
-
Single chip IC using BiCD technology
Supports PWM constant current drive and direct PWM drive
Supports four operating modes: forward, backward, braking, and stop (OFF)
Built in output MOSFET with low on resistance (high side+low side=0.6 Ω (typical value))
-
Realize high-voltage and high current drive
Built in error detection function
Thermal shutdown (TSD)
Over current detection (ISD)
Under voltage lockout (UVLO)
Built in V copy regulator for internal circuit operation
application
-
consumer electronics
industrial equipment
Factory automation system
Multifunctional printer
-
office equipment
vending machine
household electrical appliances
Universal DC motor
Specifications
-
50V motor power supply voltage (VM)
50V motor output voltage (V external)
3.5A motor output current (external)
400kHz control logic frequency input range (fLOGIC)
2.85W power consumption (PD)
-
Logic input pin voltage
6.0V VIN（H）
-0.4V VIN（L）
Working temperature range: -40 ° C to+85 ° C (TOPR)
P-HSOP-8-0405-1.27-002 package
block diagram
Pin Name
Packaging Overview
Attachment Download
